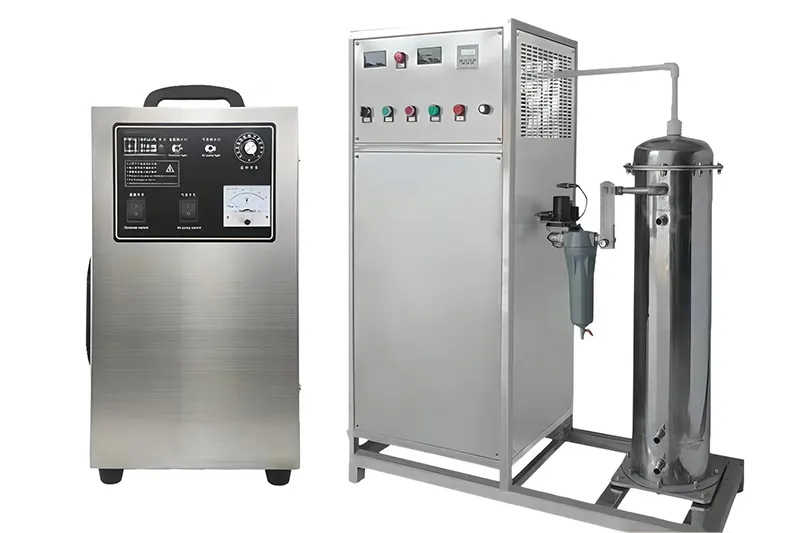

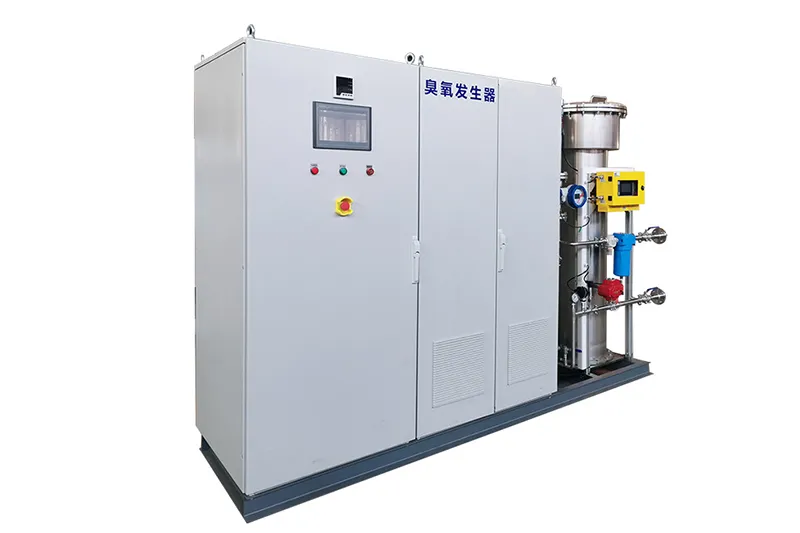

Pool Ozone Generator
Ozone water treatment system for swimming pools
Our pool ozone generator offers an efficient solution for swimming pool water treatment. Customized to meet various specific needs, it can produce between 100 to 2000 grams of ozone per hour. This water treatment system ensures effective disinfection without causing secondary pollution, keeping your pool water crystal clear and safe for swimmers.
Request a Quote
Specifications
| Model | Effective Ozone Production (g/h) | Heating Element Power (kW) | Hydrodynamic | Dosing Pipe Size (DN) |
| Pipe Size (DN) | Pressure (Mpa) |
| ECH-XD-100 | 100 | 1.0 | 25 | ≥0.3 | 25 |
| ECH-XD-300 | 300 | 1.0 | 25 | ≥0.3 | 25 |
| ECH-XD-500 | 500 | 1.0 | 25 | ≥0.3 | 32 |
| ECH-XD-800 | 800 | 1.5 | 25 | ≥0.3 | 25 |
| ECH-XD-2000 | 2000 | 2.0 | 32 | ≥0.3 | 50 |
Swimming Pool Dosing Device
Automatic dosing device for swimming pool chemicals
This dosing system automatically maintains the ideal chemical balance in your swimming pool. Using advanced sensors to monitor residual chlorine and pH levels, it adjusts the chemical levels according to preset parameters. If the water quality deviates from the desired range, the fully automated control system accurately doses the necessary chemicals.
ECH-D-604: Sample image of the dosing equipment for swimming pools

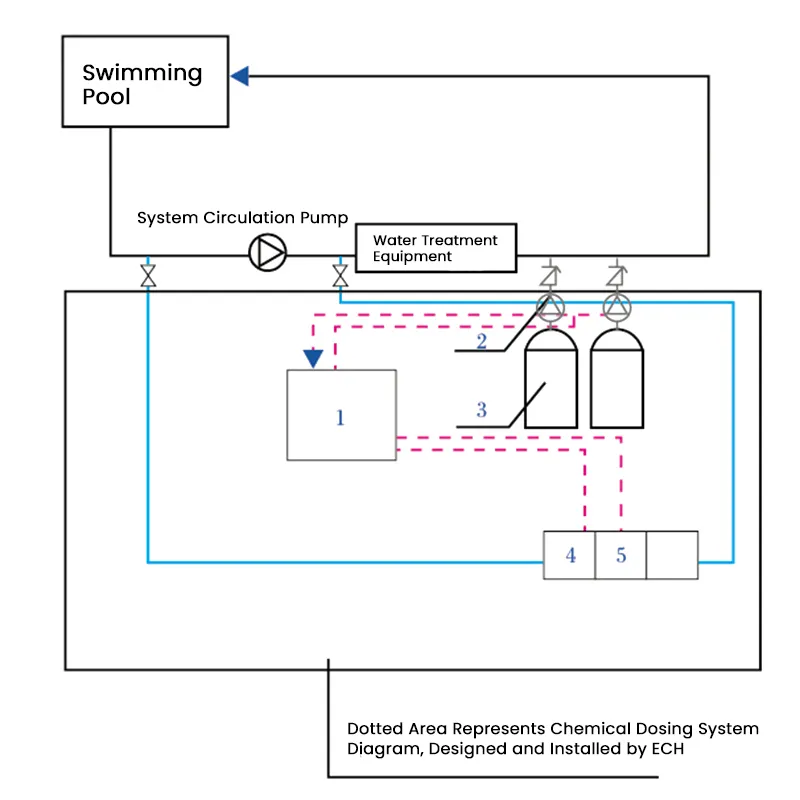

- Automatic Control System
- Metering Pump
- Chemical Dosing Tank
- On-Line Residual Chlorine Monitoring Device
- pH Monitor System
Bypass piping connected to the dosing equipment and system, made of stainless steel or plastic-lined carbon steel
Signal cables for the dosing equipment
- Swimming Pool
- System Circulation Pump
- Water Treatment Equipment
- Dotted Area Represents Chemical Dosing System Diagram, Designed and Installed by ECH
