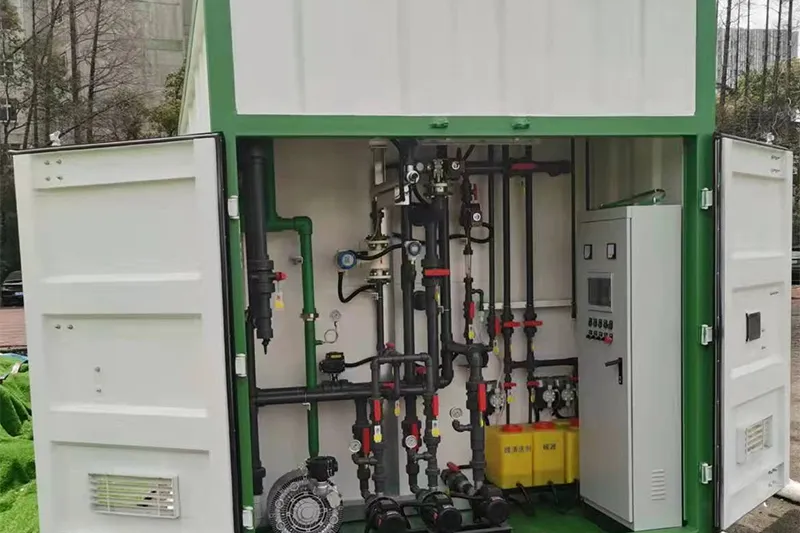

Combining biological treatment with membrane separation technology, the MBR process achieves high-efficiency solid-liquid separation, producing consistently stable reclaimed water. This method generates minimal sludge and effectively removes ammonia nitrogen, suspended solids, and turbidity, significantly reducing bacteria and viruses. Ideal for applications requiring stable effluent quality and minimal footprint.

• Raw Water
• Screening
• Blower
• Online Cleaning System
• Suction Pump
• Treated Water
• Raw Water Tank
• Anaerobic Tank
• Circulation Pump
• Aerobic/MBR Membrane
• Sludge Storage Tank
• Treated Water Tank

Process Flow Diagram

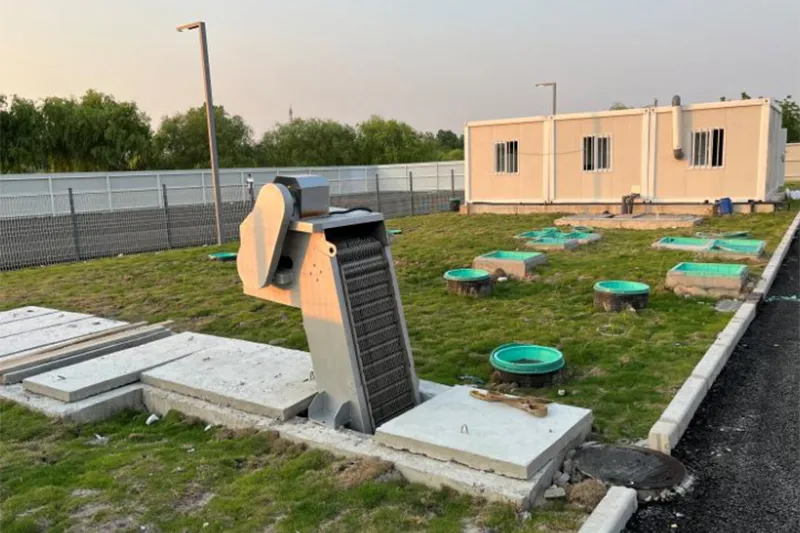

The biological contact oxidation process involves the use of a contact oxidation tank filled with special fillers. Microorganisms grow on the surface of these fillers in the form of a biofilm. As wastewater comes into contact with the biofilm, the organic matter in the water is absorbed and oxidized by the microorganisms, forming new biofilm. When the biofilm reaches a certain thickness, it sloughs off, promoting the growth of new biofilm and ensuring continuous wastewater treatment.

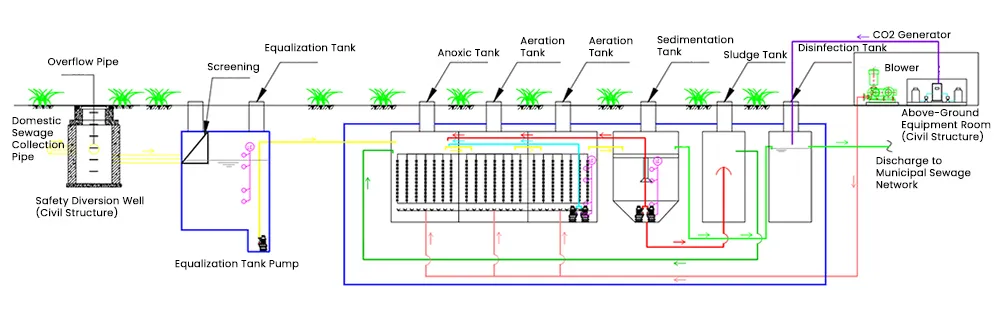

• Overflow Pipe
• Domestic Sewage Collection Pipe
• Safety Diversion Well (Civil Structure)
• Screening
• Equalization Tank
• Equalization Tank Pump
• Anoxic Tank
• Aeration Tank
• Sedimentation Tank
• Sludge Tank
• Disinfection Tank
• CO2 Generator
• Blower
• Above-Ground Equipment Room (Civil Structure)
• Discharge to Municipal Sewage Network
