Integrated Sewage Lifting Equipment

Sewage pumping unit for lifting wastewater or sewage from a lower to higher elevation

Integrated Sewage Lifting Equipment
  • Integrated Sewage Lifting Equipment

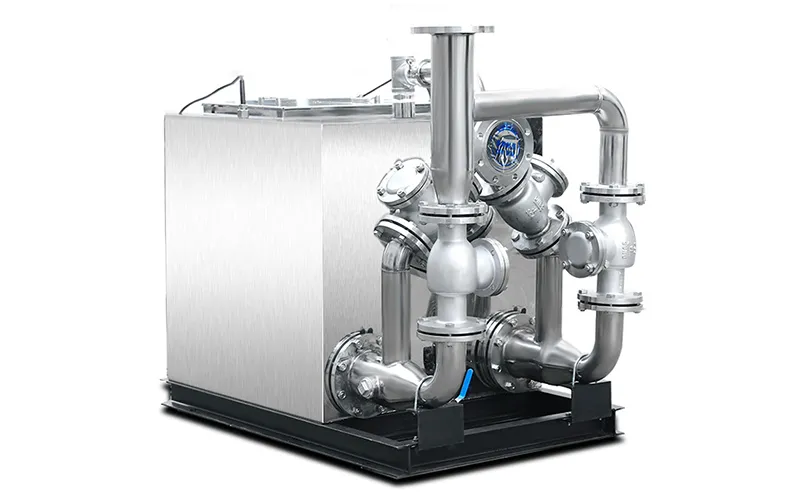

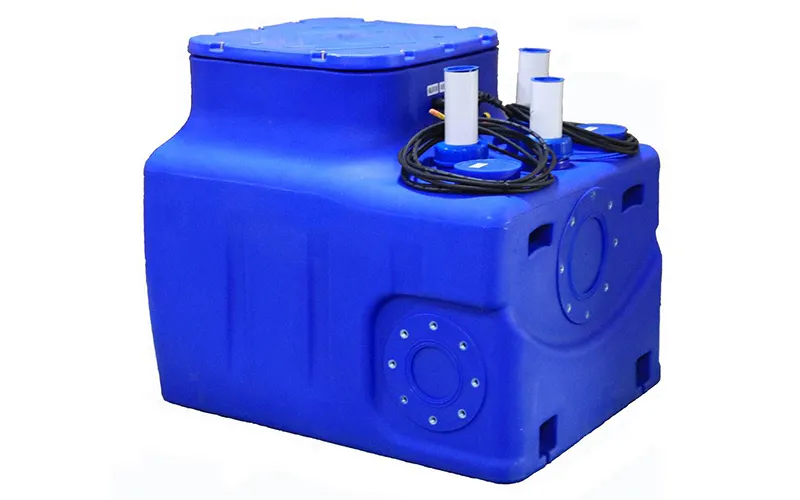

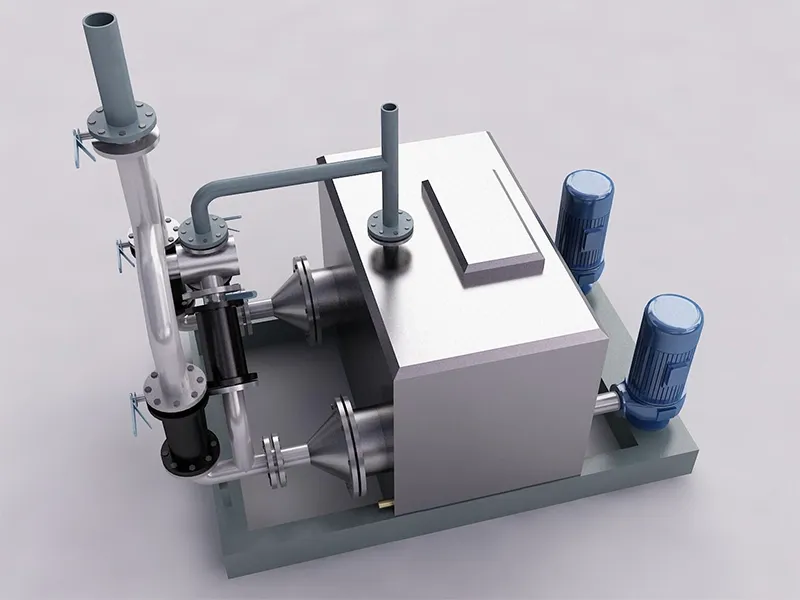

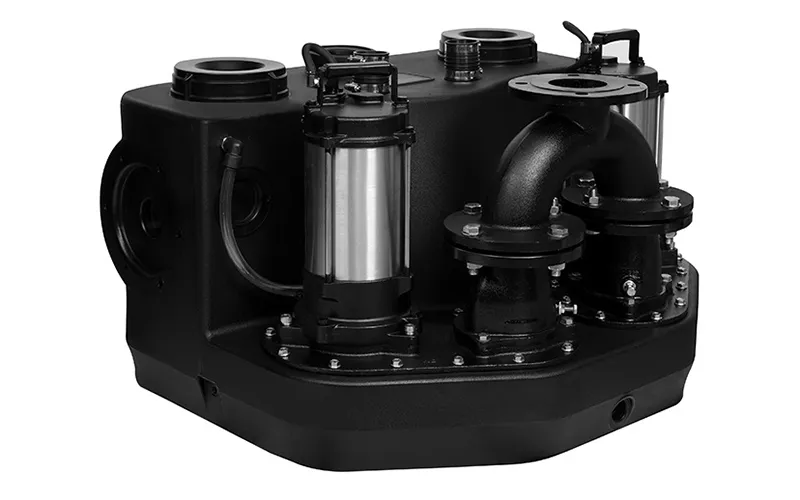

    Sewage Lifting Equipment (Built-in Type)
  • Integrated Sewage Lifting Equipment
    Sewage Lifting Equipment (External Type)
  • Integrated Sewage Lifting Equipment
    Stainless Steel Sewage Pumping Equipment

    • Integrated Sewage Lifting Equipment

    Sewage pumping unit for lifting wastewater or sewage from a lower to higher elevation

    Managing sewage in locations below the sewer line or far from municipal pipeline networks can be challenging. The sewage lifting equipment offers an efficient and reliable solution. This device is composed of a robust water collection tank, a powerful sewage pump, durable pipelines, reliable valves, a precise liquid level gauge, and an intelligent control unit. Together, these components work seamlessly to ensure that sewage is efficiently lifted and transported to the appropriate disposal point.

    Request a Quote
    • Integrated Sewage Lifting Equipment
    • Integrated Sewage Lifting Equipment
    Applications

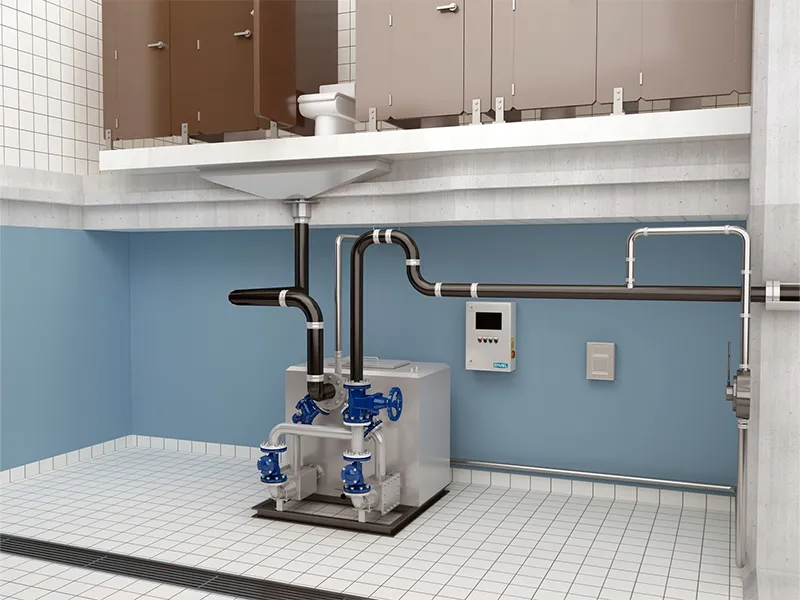

    Designed for use in large public venues, the integrated sewage lifting equipment is perfect for basement restrooms in shopping malls, hospitals, hotels, office buildings, subways, and other areas where sewage needs to be elevated. It is a key system for maintaining hygiene and functionality in these high-traffic locations.

    Specifications
    Type Water Tank Capacity (L) Dimensions
    L W H Inlet Diameter Outlet Diameter
    mm mm mm
    Single Pumping Station (Enclosed Type) 100 500 420 500 DN100 DN50
    130 550 550 600 DN100 DN50
    180 620 520 655 DN100 DN50
    Double Pumping Station (Enclosed Type) 250 760 550 655 DN100 DN50
    300 776 776 750 DN100 DN50
    400 890 660 720 DN100 DN50
    500 900 750 750 DN100/DN150 DN50
    600 1015 910 720 DN100 DN50
    1000 1080 1080 1000 DN100/DN150 DN50
    Single Pumping Station (Exposed Type) 20 520 260 434 DN100 DN80
    60 520 520 436 DN100/DN150 DN80
    120 720 620 537 DN100/DN150 DN80
    Double Pumping Station (Exposed Type) 80 665 665 466 DN100 DN80
    150 865 720 537 DN100/DN150 DN80
    450 1120 900 747 DN100/DN150 DN80
