    Oil water separator for separating grease and oil from oil-containing wastewater

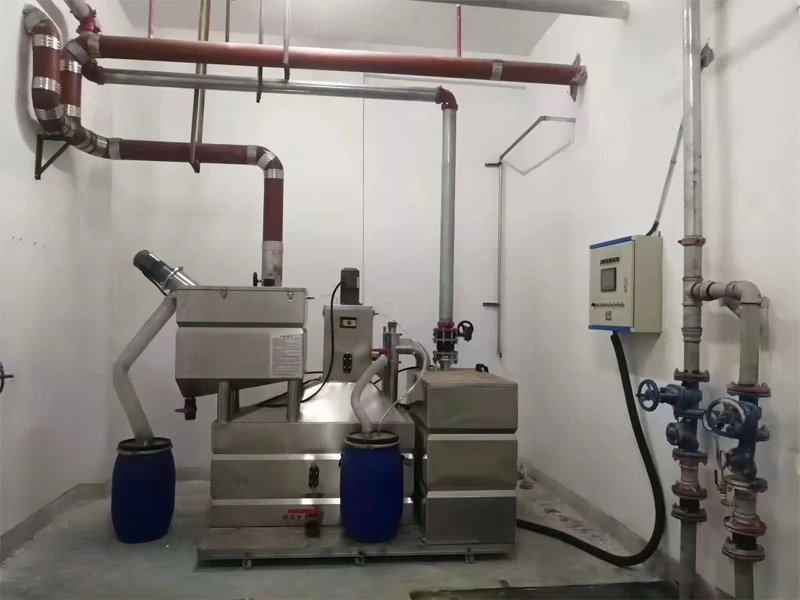

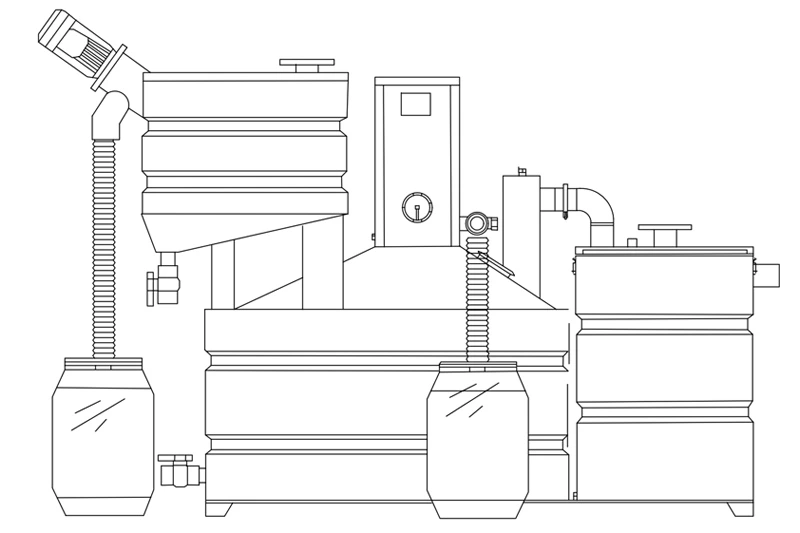

    Designed with a rectangular structure, the oil water separator is constructed from SUS304 stainless steel, ensuring durability and stability to withstand water storage and pump vibrations. The bottom is reinforced with a steel base for added support. This comprehensive equipment or apparatus includes an oil-water separation tank, deslagging device, oil discharge unit, heating element, non-clogging cutting pump, safety components, control system, and other essential accessories. Installation is secure and reliable, with easy-to-open inspection hatches and pre-configured inlet, outlet, and vent connections for seamless integration and operation.

    Request a Quote
    • Automatic Water Softener
    • Automatic Water Softener
    Applications

    Ideal for underground restaurants, hotels, kitchens, and food processing facilities that require efficient oil-water separation and lifting.

    Features

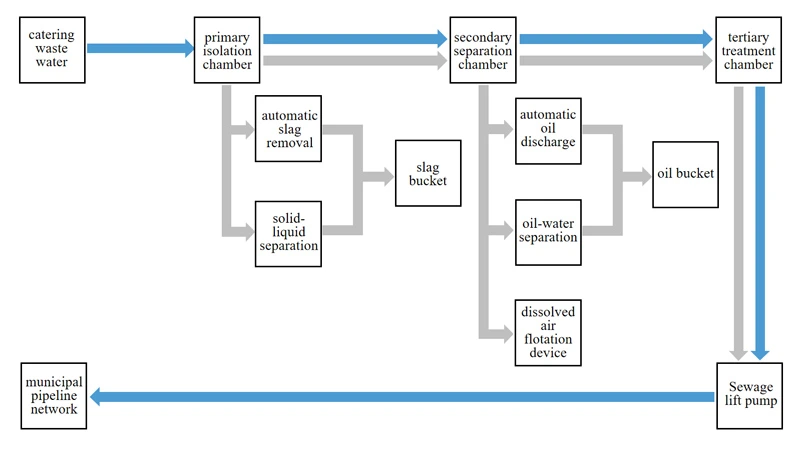

    • Oil-containing wastewater enters the grease separation zone, where the difference in oil and water density allows the oil to automatically collect in the waste oil storage area
    • The treated water flows into a storage tank, from where it is pumped out using a water pump
    • Waste oil is collected in a waste oil tank via an oil discharge valve, ensuring efficient and clean separation
    Nomenclature
    • Example: ECH-GY-5/2-W/N
    • GY: Grease separator
    • 5: Hourly processing capacity (m³)
    • 2: Dual pump
    • W/N: External/Internal installation
    Specifications
    Model Capacity Pump Head Single Pump Power Inlet Diameter Outlet Diameter External Type (W) Internal Type (N)
    (m³/h) (m) (kW) (mm) (mm) Machine Size (L×W×H) Installation Size (L×W×H) Machine Size (L×W×H) Installation Size (L×W×H)
    ECH-GY-5/2 5 10 0.75 100 100 2600×800×1400 3400×1600×1600 1900×800×1400 2700×1600×1600
    13 1.1
    20 1.5
    ECH-GY-10/2 10 10 0.75 3500×1600×1600 2000×800×1400 2800×1600×1600
    13 1.1
    20 1.5
    ECH-GY-15/2 15 15 1.5 2850×1000×1450 3650×1800×1650 2150×1000×1450 2950×1800×1650
    22 2.2
    25 3
    ECH-GY-20/2 20 15 2.2 3000×1000×1450 3800×1800×1650 2300×1000×1450 3100×1800×1650
    20 3
    28 4
    ECH-GY-25/2 25 15 2.2 3150×1200×1500 3950×2000×1700 2450×1200×1500 3250×2000×1700
    18 3
    24 4
    ECH-GY-30/2 30 15 3 3300×1200×1500 4100×2000×1700 2600×1200×1500 3400×2000×1700
    18 4
    30 5.5
