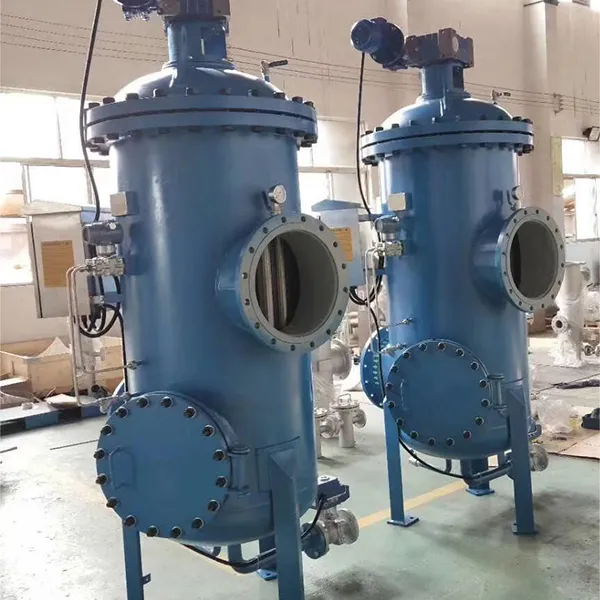

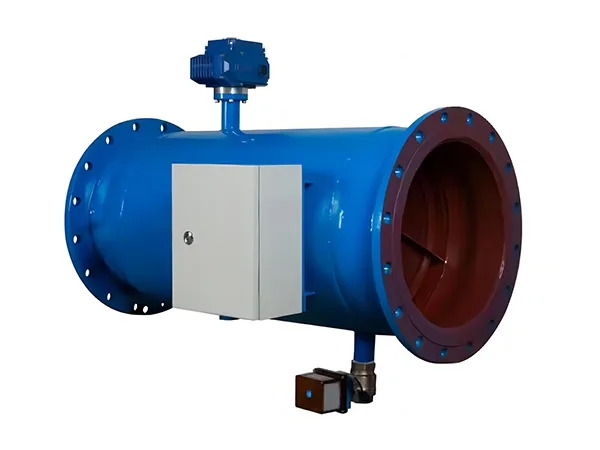

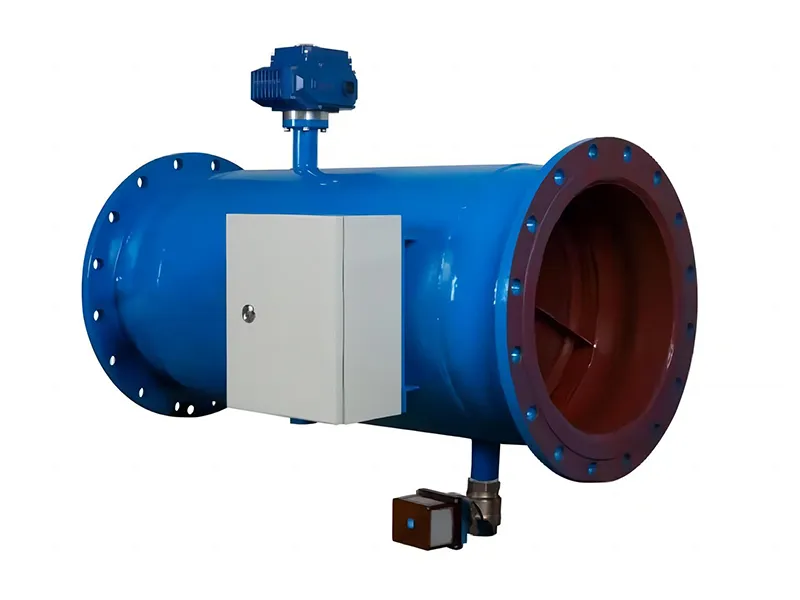

Backwash Sewage Filter

A device used to remove and filter impurities and dirt from pipelines

Backwash Sewage Filte
  • Backwash Sewage Filte
  • Backwash Sewage Filte

    • Backwash Sewage Filter

    A device used to remove and filter impurities and dirt from pipelines

    Designed for versatility and efficiency, the backwash sewage filter not only filters water but also features an automatic backwashing system that adapts to changing water conditions. This water treatment device can be installed in any direction or location, effortlessly handling fluctuations in water quality without the need for manual intervention. Its robust construction includes a carbon steel body, a stainless steel wedge wire filter screen, a butterfly valve, and an efficient drainage system.

    Request a Quote
    • Backwash Sewage Filte
    • Backwash Sewage Filte
    Applications

    Perfect for filtering industrial water, seawater, and wastewater from light chemical industries such as food and pharmaceuticals. It is also suitable for filtering circulating water, regenerating emulsions, and processing waste oil and liquid raw materials.

    Standard Filtration Grade
      µm mm mesh
    Perforated Filter 3500 3.5 4
    2500 2.5 6
    1500 1.5 10
    800 0.8 20
    Wedge Wire Filter 800 0.8 20
    500 0.5 30
    300 0.3 50
    200 0.2 80
    150 0.15 100
    Specifications
    Working Pressure ≤1.0Mpa (customizable)
    Pressure Loss ≤0.015Mpa
    Working Temperature ≤100℃
    Filtration Accuracy Customizable (based on "Standard Filtration Grade")
    Dimensions Customizable
    Flanged Connection GB9119.8-88
    Model Options

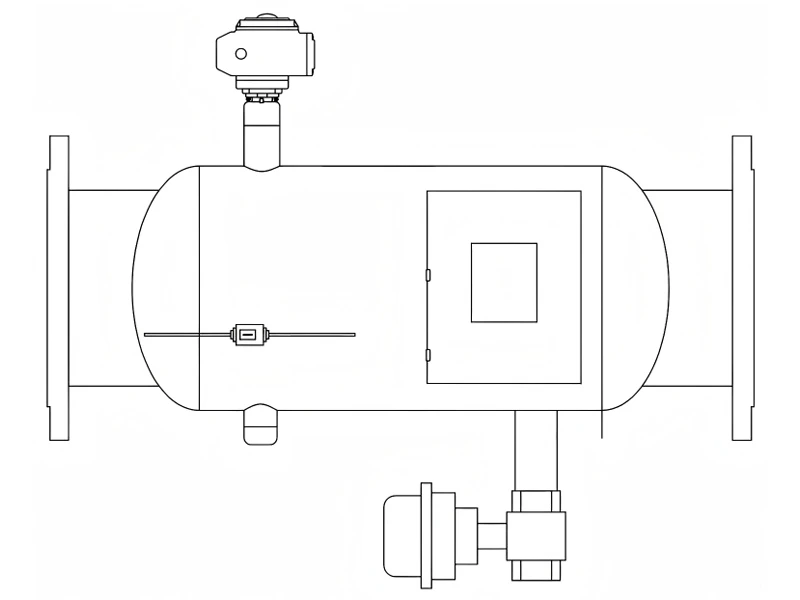

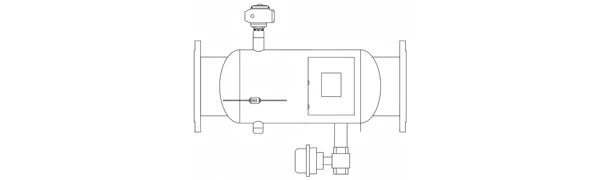

    Model Options
    Model Inlet/Outlet Diameter A L D Max. Flow Rate Weight
    mm in mm mm mm T/h kg
    ECH-G-50 50 2 410 340 25 19 20
    ECH-G-65 65 2.5 410 340 25 28 25
    ECH-G-80 80 3 500 400 25 50 35
    ECH-G-100 100 4 580 470 40 80 45
    ECH-G-125 25 5 640 530 40 25 60
    ECH-G-150 150 6 730 610 50 180 80
    ECH-G-200 200 8 900 750 50 320 150
    ECH-G-250 250 10 1050 900 50 490 180
    ECH-G-300 300 12 1300 1100 65 710 200
    ECH-G-350 350 14 1450 1250 65 970 266
    ECH-G-400 400 16 1600 1350 65 1260 377
    ECH-G-450 450 18 1800 1500 100 1590 445
    ECH-G-500 500 20 2000 1650 100 1970 603
    ECH-G-600 600 24 2000 1800 150 2850 797
    Featured Case Studies

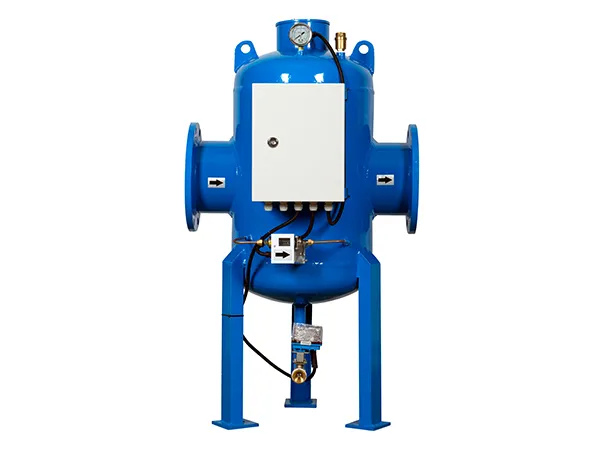

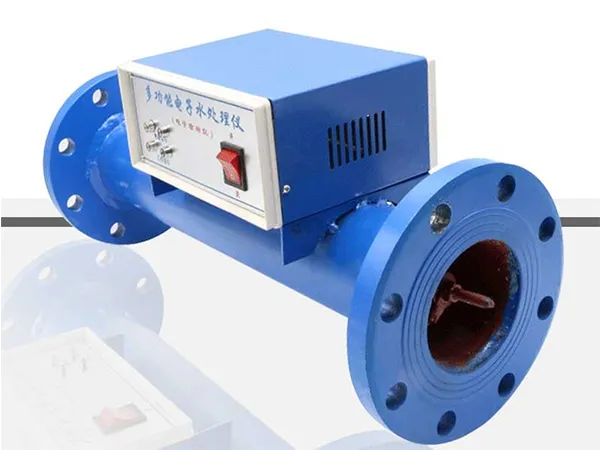

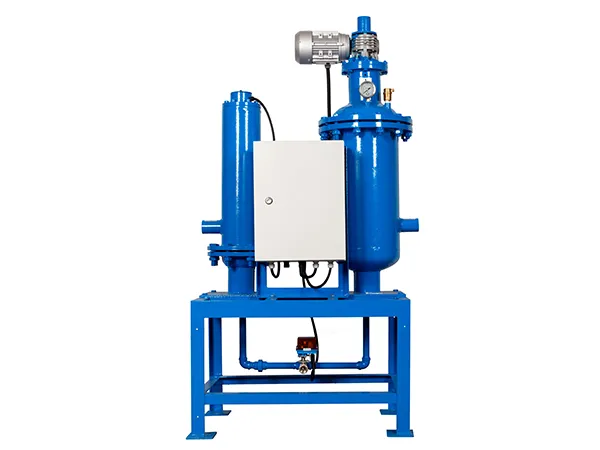

    Related Water Treatment Equipment
