    Water treatment device for filtration, sterilization and descaling

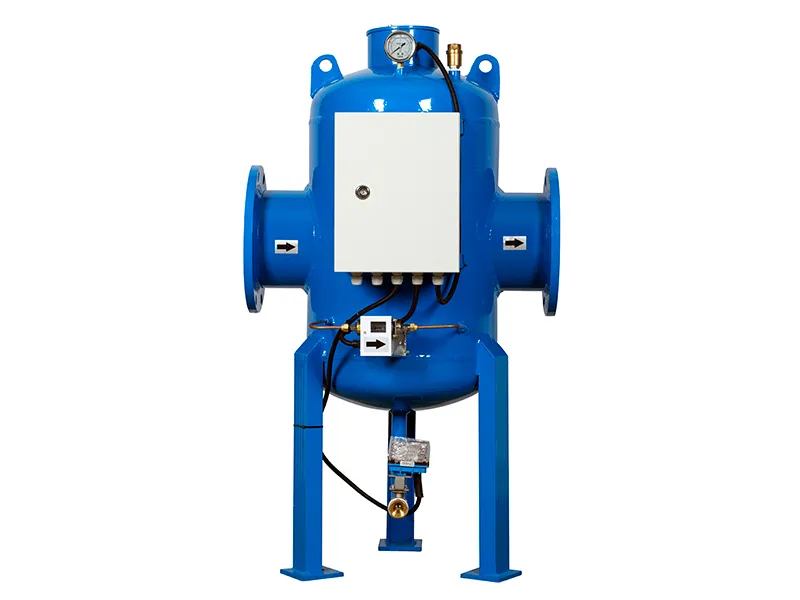

    The full integrated water processor offers efficient filtration, sterilization, and descaling of water within cooling systems. Depending on specific requirements, it allows for both automatic and manual drainage options. The main components include the main unit, filter mesh, control box, and drainage valve. By combining high-frequency technology with electric field effects, this water treatment equipment effectively tackles issues such as electrochemical corrosion, scaling, and microbial growth. It utilizes multiple high-frequency bands and electrostatic high-voltage configurations to provide a comprehensive, high-power solution. Additionally, the design ensures that the inlet and outlet ports are aligned on the same axis, minimizing head loss and maximizing system efficiency (the energy of water per unit weight at any cross-section).

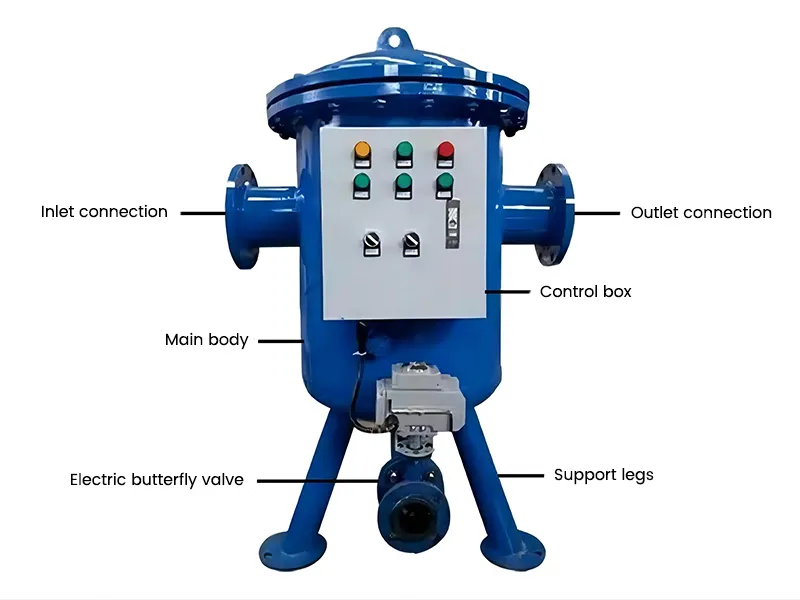

    • Inlet connection
    • Outlet connection
    • Control box
    • Main body
    • Electric butterfly valve
    • Support legs
    Request a Quote
    • Full Integrated Water Processor
    • Full Integrated Water Processor
    Applications

    Ideal for use in various water treatment systems, including central air conditioning water systems, boiler water systems, and industrial circulating water systems. It ensures efficient water treatment, maintaining optimal performance and extending the lifespan of your equipment in these demanding environments.

    Specifications
    Type A Type B Type C Type D Type E Type F Type
    Control of Corrosion Rate ≥90% / / ≥90% / ≥90%
    Ultrafiltration Rate ≥90%
    Descaling Rate / ≥95% / ≥95% ≥95% ≥95%
    Sterilization Rate / / ≥92% / ≥92% ≥92%
    Pressure Loss 0.005-0.03Mpa
    Power 100-600W
    Power Supply 198-242 AC, frequency 40-60Hz
    Safe Isolation Voltage 5000V
    Working Environment Temperature: -40℃~55℃ Humidity: ≤95%
    Lifespan Over 10 years
    Water Temperature Required A type:0℃~95℃ B type: 0℃~150℃
    Model Options
    Model
    (Example: A type)    		 Water Pipe Diameter
    (mm)    		 Capacity
    (T/h)    		 Quantity of Module
    (pc)    		 Power
    (W)    		 Net Weight
    (kg)    		 Dirty Water Outlet Diameter (mm) Height H1
    (mm)    		 Height H2
    (mm)    		 Diameter ⌀1
    (mm)    		 Diameter ⌀2
    (mm)
    ECH-Q-50 50 10-25 2 220 220 25 1000 670 770 500
    ECH-Q-80 80 25-50 2 230 230 25 1040 695 770 500
    ECH-Q-100 100 50-80 2 260 250 50 1140 785 900 500
    ECH-Q-150 150 80-160 2 270 330 50 1200 820 900 600
    ECH-Q-200 200 160-300 3 320 470 50 1290 880 1000 700
    ECH-Q-250 250 300-450 3 330 500 50 1360 920 1000 700
    ECH-Q-300 300 450-700 4 380 690 50 1510 1040 1100 800
    ECH-Q-350 350 700-1000 4 390 720 50 1590 1095 1100 800
    ECH-Q-400 400 1000-1200 5 450 940 80 1740 1220 1240 900
    ECH-Q-450 450 1200-1500 5 460 980 80 1840 1290 1240 900
    ECH-Q-500 500 1500-2000 5 520 1150 80 1940 1375 1300 1000
    ECH-Q-600 600 2000-3000 5 530 1200 80 2060 1425 1340 1000

    Note: The equipment can be customized to meet your specific requirements, with a maximum capacity of 30,000 tons per hour. These units are available with working pressure options of 1.0MPa or 1.6MPa.
