Side Flow Integrated Water Processor

Water treatment device for cooling water system and circulating water system

Side Flow Integrated Water Processor
  • Side Flow Integrated Water Processor
  • Side Flow Integrated Water Processor
  • Side Flow Integrated Water Processor

    • Side Flow Integrated Water Processor

    Water treatment device for cooling water system and circulating water system

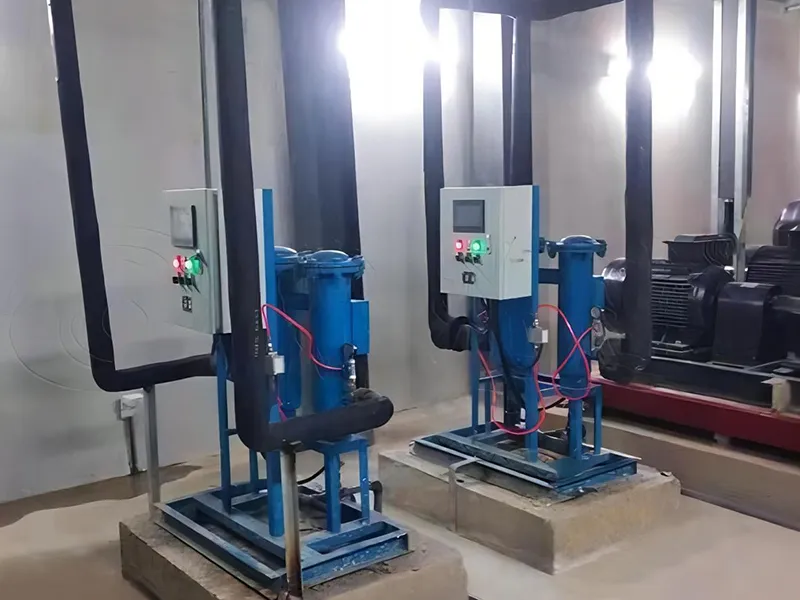

    Commonly installed on a bypass pipeline, the side flow integrated water processor treats a portion of the circulating water using advanced micro-electrolysis technology. This innovative approach produces oxidizing substances from dissolved chloride ions, oxygen molecules, and water molecules, effectively enhancing water quality and system efficiency. Different models are available to meet the unique demands of both open and closed water systems, ensuring optimal performance and extended longevity for a wide range of applications.

    Request a Quote

    Materials: Main unit Q235, filter cartridge SUS304, drainage valve SUS304

    • Side Flow Integrated Water Processor
    • Side Flow Integrated Water Processor

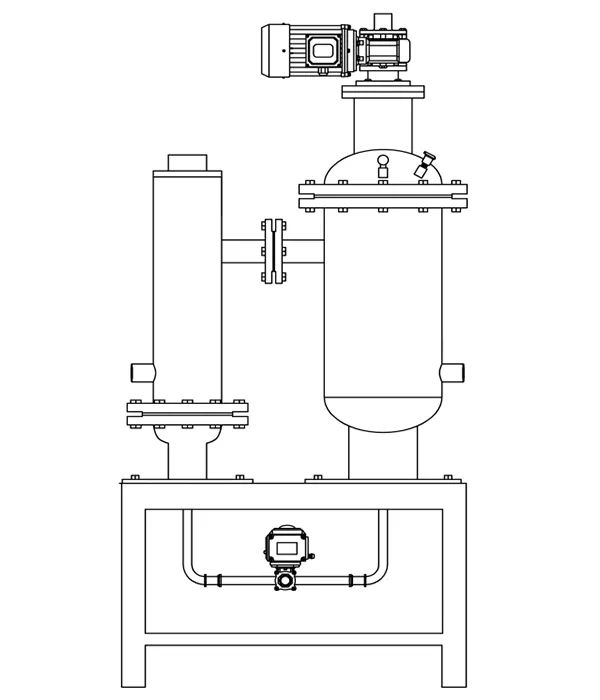

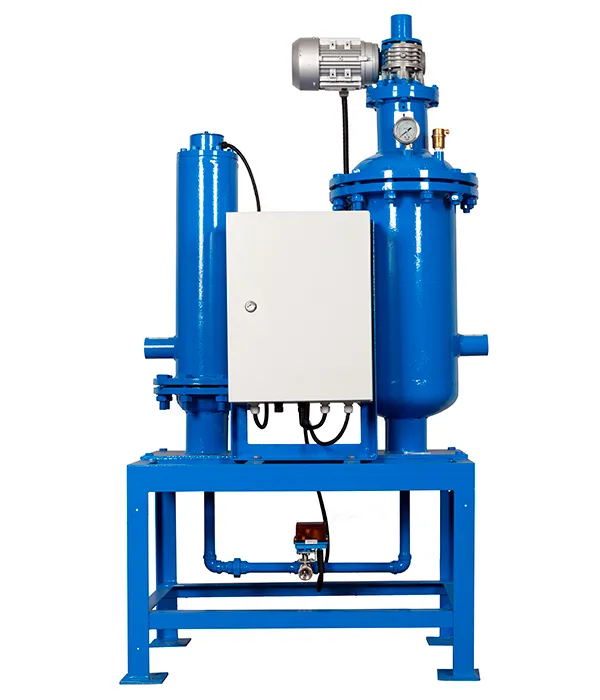

    P Type (for open cooling water system)

    Configuration: Main unit, control box, IP55 cleaning motor, stainless steel cleaning mechanism, dual-precision stainless steel filter cartridges, stainless steel electric drainage valve, differential pressure controller, brass automatic air vent valve, stainless steel vibration-resistant pressure gauge.

    • Side Flow Integrated Water Processor
    • Side Flow Integrated Water Processor

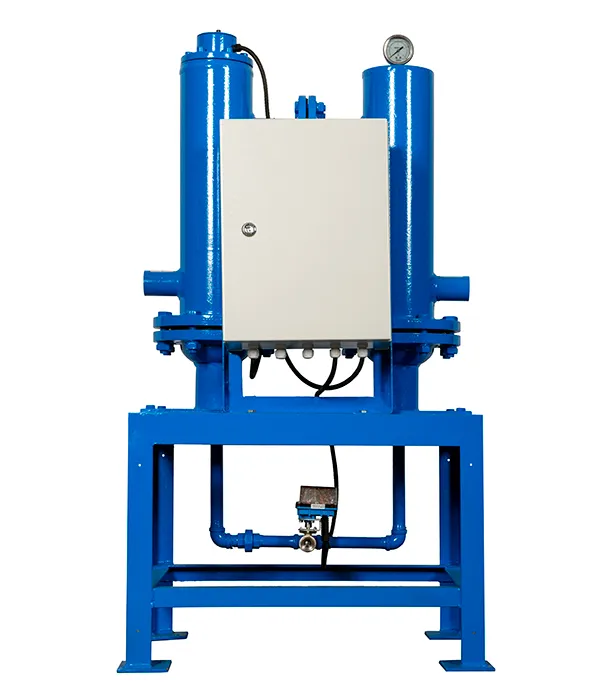

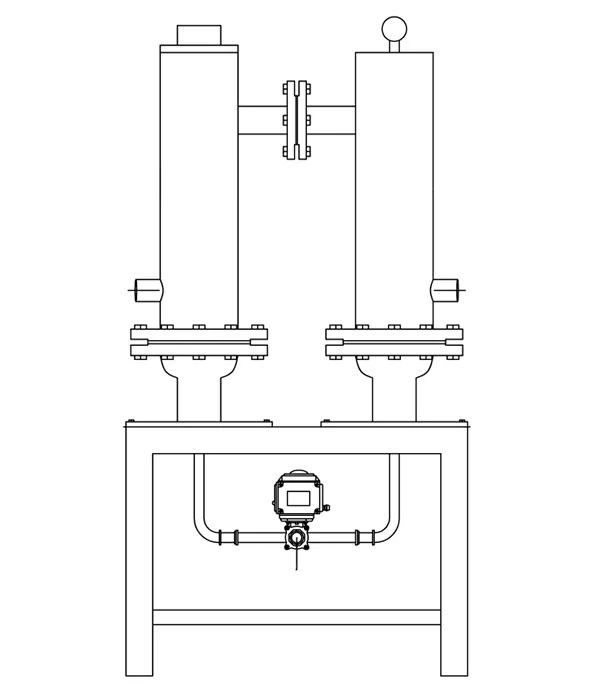

    PB Type (for closed circulating water system)

    Configuration: Main unit, control box, differential pressure controller, dual-precision filter cartridges, stainless steel electric drainage valve, stainless steel vibration-resistant pressure gauge.

    Specifications
    Model P Type (for open cooling water system) PB Type (for closed circulating water system)
    Power Supply 220V, 50Hz
    Sterilization Rate >99%
    Voltage < 36V
    Algae Killing Rate >97%
    Applicable Water Temperature 0℃-95℃
    Head Loss 2-5m 0.2-1.0m
    Raw Water Quality Measured by CaCO3
    Efficiency 97%
    Total Hardness <700mg/L
    Model Options of Side Flow Integrated Water Processor (P Type)
    Model Pipework Size
    (mm)    		 Inlet/Outlet Size
    (mm)    		 Dimensions
    L×W×H (mm)    		 Floor Area
    L×W (mm)    		 Net Weight
    (kg)    		 Operating Weight
    (kg)    		 Dirty Water Outlet Diameter
    (mm)    		 Power
    (W)
    ECH-P-80 DN80 DN25 845×565×1695 845×565 161 221 DN20 1000
    ECH-P-100 DN100 DN25 845×565×1695 845×565 161 221 DN20 1000
    ECH-P-125 DN125 DN25 845×565×1695 845×565 161 221 DN20 1000
    ECH-P-150 DN150 DN25 845×565×1695 845×565 161 221 DN20 1000
    ECH-P-200 DN200 DN25 845×565×1695 845×565 161 221 DN20 1000
    ECH-P-250 DN250 DN32 845×565×1695 845×565 162 222 DN20 1000
    ECH-P-300 DN300 DN32 845×565×1695 845×565 162 222 DN20 1000
    ECH-P-350 DN350 DN32 845×565×1695 845×565 162 222 DN20 1000
    ECH-P-400 DN400 DN32 845×565×1695 845×565 162 222 DN20 1000
    ECH-P-450 DN450 DN40 845×565×1695 845×565 163 223 DN20 1000
    ECH-P-500 DN500 DN40 845×565×1695 845×565 163 223 DN20 1000
    ECH-P-600 DN600 DN40 845×565×1695 845×565 163 223 DN20 1000
    ECH-P-700 DN700 DN50 915×565×1695 845×565 165 225 DN20 1000
    ECH-P-800 DN800 DN50 915×565×1695 845×565 165 225 DN20 1000
    ECH-P-900 DN900 DN65 915×565×1695 845×565 168 228 DN20 1000
    ECH-P-1000 DN1000 DN65 915×565×1695 845×565 168 228 DN20 1000
    Model Options of Side Flow Integrated Water Processor (PB Type)
    Model Pipework Size
    (mm)    		 Inlet/Outlet Size
    (mm)    		 Dimensions
    L×W×H (mm)    		 Floor Area
    L×W (mm)    		 Net Weight
    (kg)    		 Operating Weight
    (kg)    		 Dirty Water Outlet Diameter
    (mm)    		 Power
    (W)
    ECH-PB-80 DN80 DN25 745×565×1355 745×565 129 179 DN20 250
    ECH-PB-100 DN100 DN25 745×565×1355 745×565 129 179 DN20 250
    ECH-PB-125 DN125 DN25 745×565×1355 745×565 129 179 DN20 250
    ECH-PB-150 DN150 DN25 745×565×1355 745×565 129 179 DN20 250
    ECH-PB-200 DN200 DN25 745×565×1355 745×565 129 179 DN20 250
    ECH-PB-250 DN250 DN32 745×565×1355 745×565 130 180 DN20 250
    ECH-PB-300 DN300 DN32 745×565×1355 745×565 130 180 DN20 250
    ECH-PB-350 DN350 DN32 745×565×1355 745×565 130 180 DN20 250
    ECH-PB-400 DN400 DN32 745×565×1355 745×565 130 180 DN20 250
    ECH-PB-450 DN450 DN40 745×565×1355 745×565 132 182 DN20 250
    ECH-PB-500 DN500 DN40 745×565×1355 745×565 132 182 DN20 250
    ECH-PB-600 DN600 DN40 745×565×1355 745×565 132 182 DN20 250
    ECH-PB-700 DN700 DN50 805×565×1355 745×565 133 183 DN20 250
    ECH-PB-800 DN800 DN50 805×565×1355 745×565 133 183 DN20 250
    ECH-PB-900 DN900 DN65 805×565×1355 745×565 135 185 DN20 250
    ECH-PB-1000 DN1000 DN65 805×565×1355 745×565 135 185 DN20 250
