    Stainless steel precision filter for water treatment

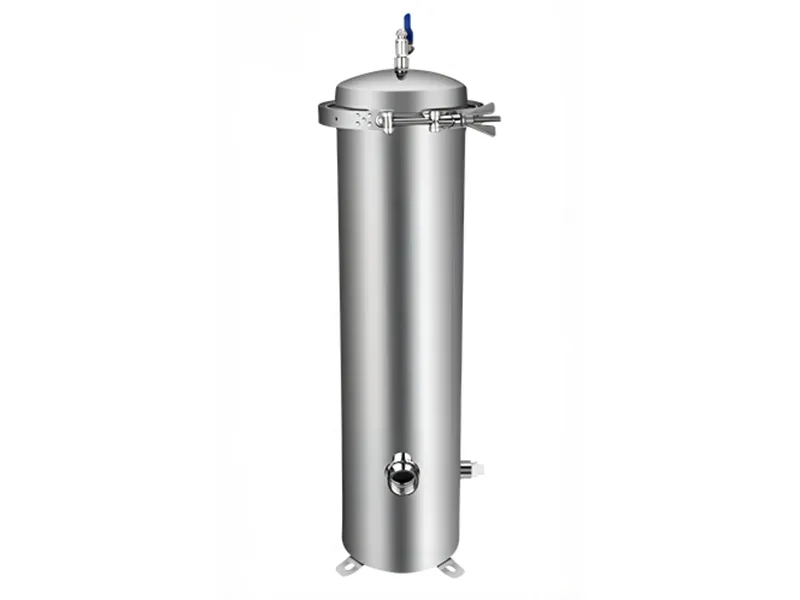

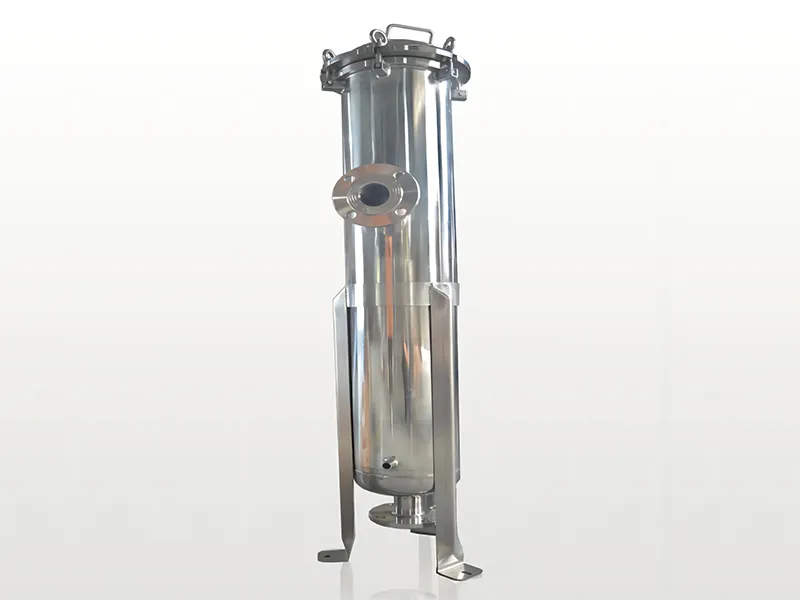

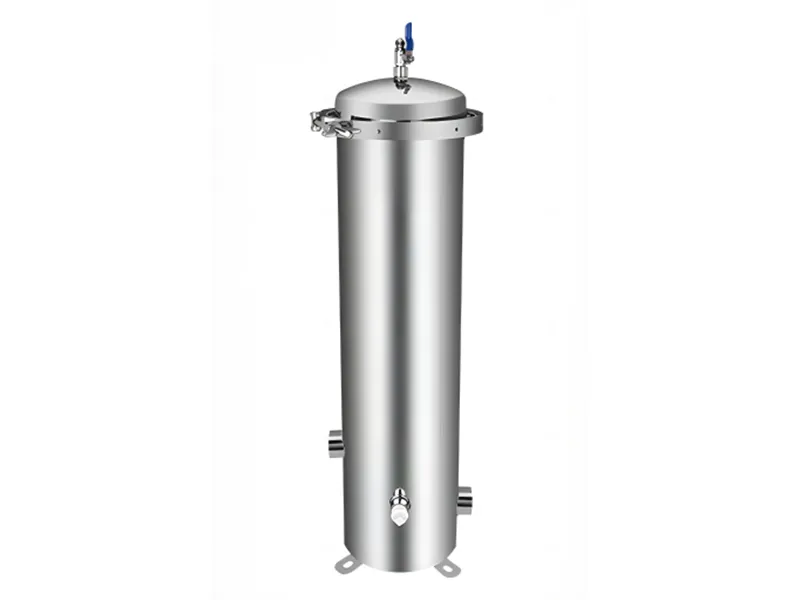

    Designed for high-performance water filtration, the precision filter, also known as a security filter, offers exceptional versatility with its clamp-type and flange-type models. The durable stainless steel housing protects the filter elements inside, which can include PP melt-blown, string-wound, pleated, titanium, and activated carbon filters. These elements are selected based on the specific filtration requirements to ensure optimal water quality. For systems with small to medium flow rates, quick-installation models simplify the process of replacing and cleaning filter elements. Precision filters are necessary in safeguarding reverse osmosis membranes from large particles and providing final filtration in various water treatment setups.

    Request a Quote
    • Precision Filter
    Applications
    • Used in pre-treatment and terminal filtration in nanofiltration, ultrafiltration, reverse osmosis, and electrodialysis systems
    • Suitable for high-purity water filtration in industries like electronics and semiconductors
    • Effective in wastewater treatment and recycling processes for greywater
    Specifications
    Design Pressure 0.75-1.9Mpa
    Design Temperature 20℃~120℃
    Seal Type O ring and washer
    Seal Material Nitrile rubber, silicone, fluororubber (silicone seal used as standard configuration)
    Connection Thread, clamp, GB, HG, DIN, ANSI, JIS standard flange
    Filter Element Flat, 222/226 fin
    Surface Treatment Matt, mirror polished, electrolytic polished
    Filtration Accuracy 1μm-100μm
    Material SUS304, 316L
    Model Options
    Model Filter Diameter (mm) Inlet Height A (mm) Outlet Height E (mm) Total Height H (mm) Port Size Theoretical Flow (m³/h)
    ECH-JM-0.5 ⌀108 90 45 380 1'' 0.5
    ECH-JM-1 ⌀108 90 45 650 1'' 1
    ECH-JM-1.5 ⌀160 120 45 500 1'' 1.5
    ECH-JM-3 ⌀160 120 45 700 1'' 3
    ECH-JM-2.5 ⌀200 120 45 500 1.5'' 2.5
    ECH-JM-5 ⌀200 120 45 740 1.5'' 5
    ECH-JM-7.5 ⌀200 160 60 1010 2'' 7.5
    ECH-JM-10 ⌀200 160 60 1290 2'' 10
    ECH-JM-7 ⌀230 160 60 500 1.5'' 7
    ECH-JM-7 ⌀230 160 60 760 1.5'' 7
    ECH-JM-10.5 ⌀230 160 60 1030 2'' 10.5
    ECH-JM-14 ⌀230 160 60 1310 2'' 14
    ECH-JM-15 ⌀300 180 60 1050 2.5'' 15
    ECH-JM-20 ⌀300 180 60 1500 2.5'' 20
    ECH-JM-20 ⌀300 180 60 1500 2.5'' 20
    ECH-JM-22 ⌀350 250 120 1050 2.5'' 22
    ECH-JM-30 ⌀350 250 120 1500 3'' 30
    ECH-JM-30 ⌀400 250 120 1100 3'' 30
    ECH-JM-40 ⌀400 250 120 1550 3'' 40
    ECH-JM-37 ⌀450 1050 300 1630 3'' 37
    ECH-JM-50 ⌀450 1200 350 2030 4'' 50
    ECH-JM-45 ⌀500 1050 350 1800 4'' 45
    ECH-JM-60 ⌀500 1200 350 2150 4'' 60
    ECH-JM-60 ⌀600 1050 400 1900 4'' 60
    ECH-JM-80 ⌀600 1200 400 2150 5'' 80
    ECH-JM-75 ⌀700 1050 400 1950 5'' 75
    ECH-JM-10 ⌀700 1200 400 2200 6'' 10
    ECH-JM-97 ⌀800 1200 400 2000 6'' 97
    ECH-JM-130 ⌀800 1350 400 2250 6'' 130
    ECH-JM-160 ⌀900 1350 450 2350 8'' 160
    ECH-JM-200 ⌀1000 1350 500 2450 10'' 200
